Vectors are fundamental concepts in both mathematics and science, representing quantities that possess both magnitude and direction. To illustrate this, consider two individuals reporting their running speeds: one states they ran at 6 miles per hour, while the other specifies they ran at 6 miles per hour northeast. The first individual provides only a magnitude, while the second includes both magnitude and direction, exemplifying a vector.

Visually, vectors are depicted as arrows. The starting point of the arrow is referred to as the initial point, and the tip of the arrow is the terminal point. The length of the vector corresponds to its magnitude; for instance, a vector representing a speed of 6 miles per hour will be shorter than one representing 50 miles per hour. The direction of a vector is determined by its angle; for example, a vector pointing northeast at a 30-degree angle indicates its direction.

Interestingly, vectors can also be negative. A negative vector retains the same magnitude but points in the opposite direction. For instance, if a vector v represents 6 miles per hour northeast, then negative v would represent 6 miles per hour southwest. This concept helps in understanding how vectors can change direction while maintaining their magnitude.

Another important concept is the zero vector, which has a magnitude of 0 and no direction. This is analogous to stating that one is running at 0 miles per hour, indicating no movement and, consequently, no direction. Overall, vectors are essential for conveying information about quantities that involve both how much and in which direction, making them crucial for various applications in mathematics and science.

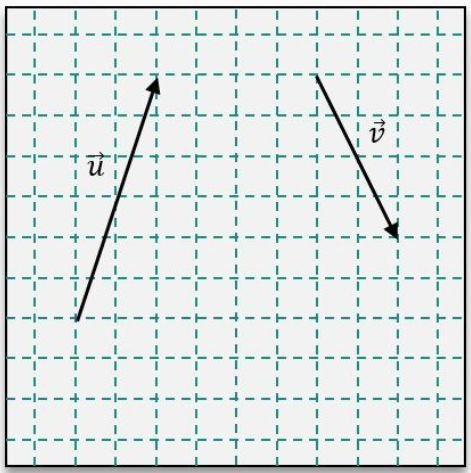

Vectors are fundamental mathematical objects that can be represented visually as arrows in space, characterized by both magnitude and direction. When adding vectors, one effective method is the tip-to-tail method. This technique involves placing the tip of the first vector at the tail of the second vector. The resultant vector, which represents the sum of the two vectors, is then drawn from the initial point of the first vector to the terminal point of the second vector. For example, if we have vectors u and v, the resultant vector can be expressed as u + v.

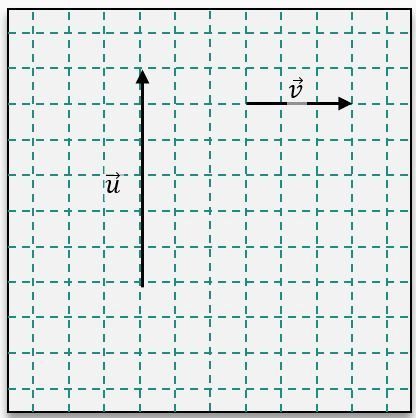

Subtraction of vectors can be approached similarly, as it is equivalent to adding a negative vector. To subtract vector v from vector u, we can express this as u - v = u + (-v). Here, the negative vector -v has the same magnitude as v but points in the opposite direction. By connecting the vectors tip to tail, we can find the resultant vector for the subtraction.

To illustrate these concepts, consider two examples. In the first example, when calculating v + u, the resultant vector will be the same regardless of the order of addition, demonstrating the commutative property of vector addition. This means v + u is equal to u + v. However, in the second example, when calculating v - u and u - v, the results differ, indicating that the order of subtraction matters. This aligns with the properties of real numbers, where addition is commutative, but subtraction is not.

In summary, understanding how to visually add and subtract vectors using the tip-to-tail method is crucial. The resultant vector from addition is independent of the order of the vectors, while the order does affect the outcome in subtraction. This foundational knowledge is essential for further studies in vector mathematics and physics.

In vector operations, understanding how to manipulate and combine vectors is essential. When tasked with finding the resultant vector of the expression \( \mathbf{u} + \mathbf{v} - \mathbf{w} \), we can simplify the operation by rewriting it as \( \mathbf{u} + (\mathbf{v} + (-\mathbf{w})) \). This approach allows us to visualize the vectors more clearly on a grid.

To begin, we first determine the vector \( -\mathbf{w} \). This vector has the same magnitude as \( \mathbf{w} \) but points in the opposite direction. By identifying the position of \( \mathbf{w} \), we can sketch \( -\mathbf{w} \) accordingly.

Next, we need to compute \( \mathbf{v} + (-\mathbf{w}) \). This can be achieved using the tip-to-tail method, where the tip of vector \( \mathbf{v} \) is connected to the tail of vector \( -\mathbf{w} \). By measuring the distance, we find that \( -\mathbf{w} \) extends 6 units to the left. The resultant vector from this operation, which represents \( \mathbf{v} - \mathbf{w} \), can then be drawn from the starting point of \( \mathbf{v} \) to the endpoint of \( -\mathbf{w} \).

Finally, to find \( \mathbf{u} + (\mathbf{v} - \mathbf{w}) \), we again apply the tip-to-tail method. We connect the tip of vector \( \mathbf{u} \) to the tail of the resultant vector \( \mathbf{v} - \mathbf{w} \). By measuring the components, we can determine the final position of the resultant vector, which gives us \( \mathbf{u} + \mathbf{v} - \mathbf{w} \).

This process illustrates the importance of vector addition and subtraction, as well as the utility of the tip-to-tail method in visualizing and calculating resultant vectors. Understanding these concepts is crucial for solving more complex vector problems in physics and mathematics.

In vector mathematics, multiplying vectors by scalars is a fundamental operation that alters the magnitude of the vector while maintaining its direction. A scalar is simply a numerical value that has magnitude but no direction, such as 3, -5, or 0.5. When you multiply a vector by a scalar, the result is a new vector that is either stretched or shrunk based on the scalar's value.

For instance, if you have a vector v with coordinates (3, 1), multiplying it by a scalar of 3 results in a new vector 3v with coordinates (9, 3). This demonstrates that the new vector retains the same direction as the original but has a greater magnitude.

To illustrate this concept further, consider the operation of finding one half of a vector u. If u is represented by the coordinates (4, 2), then one half of u would yield a new vector with coordinates (2, 1), effectively shrinking the original vector by half.

When dealing with negative scalars, the direction of the vector is reversed. For example, if you multiply vector v (2, 3) by -2, the resulting vector -2v would have coordinates (-4, -6), indicating a change in direction along with the scaling effect.

In more complex operations, such as finding one half of the sum of two vectors w and v, you first add the vectors using the tip-to-tail method. If w is (1, -1) and v is (6, 3), the resultant vector w + v would be (7, 2). Multiplying this resultant vector by 0.5 gives you (3.5, 1), which is the final answer.

Understanding how to manipulate vectors through scalar multiplication is crucial for solving various problems in physics and engineering, as it allows for the adjustment of vector quantities while preserving their directional properties.

In this example, we explore the vector operation of combining multiple vectors, specifically calculating the resultant vector of \(-2\mathbf{w} + \mathbf{u} - \mathbf{v}\). The vectors \(\mathbf{u}\), \(\mathbf{v}\), and \(\mathbf{w}\) are oriented either horizontally or vertically, which simplifies the process of sketching and calculating the resultant vector.

To begin, we focus on the operation \(\mathbf{u} - \mathbf{v}\). This requires us to represent \(\mathbf{v}\) as a negative vector, \(-\mathbf{v}\), which points in the opposite direction of \(\mathbf{v}\) while maintaining the same magnitude. By placing the tail of \(-\mathbf{v}\) at the tip of \(\mathbf{u}\), we can find the resultant vector \(\mathbf{u} - \mathbf{v}\) by connecting the initial point of \(\mathbf{u}\) to the terminal point of \(-\mathbf{v}\).

Next, we calculate \(-2\mathbf{w}\). If \(\mathbf{w}\) has a length of 4 units to the left, then \(2\mathbf{w}\) will extend 8 units to the left. To find \(-2\mathbf{w}\), we simply reverse the direction of \(2\mathbf{w}\), resulting in a vector that points 8 units to the right.

Now, to find the final resultant vector \(-2\mathbf{w} + (\mathbf{u} - \mathbf{v})\), we apply the tip-to-tail method again. We take the vector \(-2\mathbf{w}\) and place its tail at the tip of the vector \(\mathbf{u} - \mathbf{v}\). The resultant vector is then drawn from the initial point of \(\mathbf{u}\) to the terminal point of \(-2\mathbf{w}\), providing us with the final solution.

This method of vector addition emphasizes the importance of direction and magnitude, allowing us to visualize and compute complex vector operations effectively.
