  • Bonding in Organic Compounds (Part 1)

Atoms: The Smallest Unit of Matter

Atoms are the fundamental building blocks of matter, forming the basis for all chemical substances, including those central to organic chemistry. Understanding atomic structure is essential for grasping how organic molecules are formed and interact.

  • Matter: Anything that occupies space and has mass. All matter is composed of chemical elements.

  • Chemical Element: A pure substance consisting of only one type of atom.

  • Atom: The smallest unit of an element, retaining its chemical properties.

    ghggbbhb

    sadjlknasdasd

    dad

Flowchart showing matter, chemical element, and atom

Atomic Structure and Subatomic Particles

Atoms are composed of three main subatomic particles, each with distinct properties and locations within the atom.

  • Protons: Positively charged particles located in the nucleus; define the atomic number.

  • Neutrons: Neutral particles also found in the nucleus; contribute to atomic mass.

  • Electrons: Negatively charged particles orbiting the nucleus in energy shells.

Diagram of a carbon atom showing protons, neutrons, and electronsTable and diagram of subatomic particles

Subatomic Particle

Electric Charge

Atomic Mass Unit (AMU)

Location

Proton

+1

1

Nucleus

Neutron

0

1

Nucleus

Electron

-1

0

Electron shell

Elements of Life and the Periodic Table

Only a small subset of elements are essential for life, with carbon, hydrogen, nitrogen, oxygen, phosphorus, and sulfur (CHNOPS) making up the majority of biological mass. The periodic table organizes elements by their chemical properties.

  • Major Elements: Required in large amounts (e.g., CHNOPS).

  • Trace Elements: Required in minute quantities but essential for life.

Periodic table highlighting major and trace elements

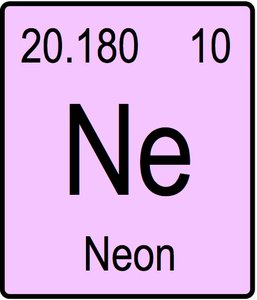

Atomic Properties: Atomic Number, Mass Number, and Atomic Mass

Each atom is characterized by its atomic number, mass number, and atomic mass, which are fundamental for understanding isotopes and chemical behavior.

  • Atomic Number (Z): Number of protons in the nucleus; unique to each element.

  • Mass Number (A): Total number of protons and neutrons in the nucleus.

  • Atomic Mass: Weighted average mass of all isotopes of an element.

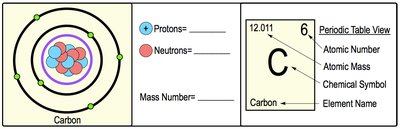

Diagram showing atomic number, mass number, and periodic table entry for carbon

Electron Orbitals and Energy Shells

Electrons occupy specific energy levels (shells) around the nucleus. The arrangement of electrons determines chemical reactivity and bonding.

  • Electron Shells: 3D regions where electrons are likely to be found; visualized as concentric circles.

  • Valence Electrons: Electrons in the outermost shell; crucial for chemical bonding.

  • 1st shell holds up to 2 electrons; 2nd shell up to 8 electrons.

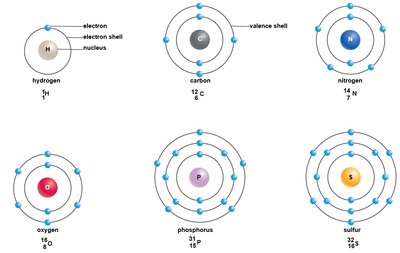

Energy shells for common biological elements

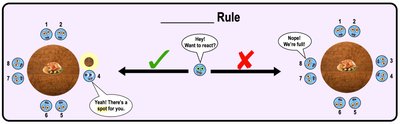

The Octet Rule

The octet rule states that atoms are most stable when their valence shell is full, typically with eight electrons. This rule explains the tendency of atoms to form bonds.

  • Atoms with incomplete valence shells are more reactive.

  • Atoms achieve stability by gaining, losing, or sharing electrons to fill their outer shell.

Diagram illustrating the octet rule

Bonding in Organic Compounds (Part 2)

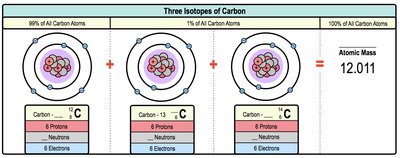

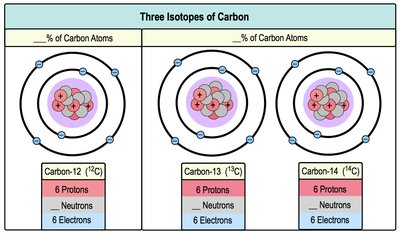

Isotopes

Isotopes are atoms of the same element with different numbers of neutrons, resulting in different mass numbers but identical chemical properties.

  • Isotopes: Same atomic number, different mass numbers.

  • Atomic Mass: Average of all isotopes' masses, weighted by abundance.

Three isotopes of carbon with different numbers of neutrons

Radioactive Isotopes and Half-Life

Some isotopes are unstable (radioactive) and decay over time, emitting energy and particles. The half-life is the time required for half of a sample to decay.

  • Radioactive Isotopes: Used in medicine (imaging, cancer treatment) and dating fossils.

  • Half-life: Characteristic decay time for radioactive isotopes.

Decay curve of Carbon-14 showing half-livesMedical imaging and fossil dating applications of radioactive isotopes

Introduction to Chemical Bonding

Chemical Bonds: Types and Importance

Chemical bonds are attractive forces that hold atoms together in molecules and compounds. Understanding the types of bonds is foundational for organic chemistry.

  • Molecule: Two or more atoms chemically bonded (e.g., O2).

  • Compound: Molecule composed of two or more different elements (e.g., H2O).

  • Chemical Formula: Indicates the types and numbers of atoms in a molecule (e.g., C6H12O6).

Intramolecular vs. Intermolecular Bonds

Bonds can be classified based on whether they occur within a molecule (intramolecular) or between molecules (intermolecular).

  • Intramolecular Bonds: Hold atoms together within a molecule (e.g., covalent bonds in H2O).

  • Intermolecular Bonds: Occur between molecules (e.g., hydrogen bonds between water molecules).

Covalent Bonds

Covalent bonds involve the sharing of electron pairs between atoms. They are the primary bonds in organic molecules.

  • Nonpolar Covalent Bonds: Equal sharing of electrons due to similar electronegativities (e.g., H2, O2).

  • Polar Covalent Bonds: Unequal sharing of electrons due to different electronegativities, resulting in partial charges (e.g., H2O).

  • Electronegativity: A measure of an atom's ability to attract electrons in a bond (scale: 0–4).

Noncovalent Bonds

Noncovalent bonds are interactions that do not involve sharing of electrons. They are generally weaker than covalent bonds but are crucial for molecular interactions in biology.

  • Ionic Bonds: Attraction between oppositely charged ions (cations and anions).

  • Hydrogen Bonds: Weak interactions between a hydrogen atom covalently bonded to a highly electronegative atom (F, O, N) and another electronegative atom.

  • Van der Waals Forces: Weak attractions due to transient dipoles in molecules.

Ionic Bonding: Ions, Anions, and Cations

Ionic bonds form when electrons are transferred from one atom to another, resulting in charged ions that attract each other.

  • Anion: Negatively charged ion (gains electrons).

  • Cation: Positively charged ion (loses electrons).

  • Ionic Bond: Electrostatic attraction between cations and anions.

Hydrogen Bonding

Hydrogen bonds are essential for the structure and properties of water and biological macromolecules. They occur when a hydrogen atom covalently bonded to F, O, or N interacts with another electronegative atom.

  • Individually weak, but collectively strong and significant in biological systems.

  • Responsible for water's high boiling point and the structure of DNA and proteins.

Summary Table: Types of Chemical Bonds

Bond Type

Mechanism

Relative Strength

Example

Covalent (Nonpolar)

Equal sharing of electrons

Strong

H2, O2

Covalent (Polar)

Unequal sharing of electrons

Strong

H2O

Ionic

Transfer of electrons

Moderate

NaCl

Hydrogen

Attraction between H and electronegative atom

Weak (individually)

Between water molecules

Van der Waals

Transient dipole interactions

Very weak

Between nonpolar molecules

Key Equations:

  • Mass Number: (where = mass number, = number of protons, = number of neutrons)

  • Average Atomic Mass:

Additional info: This foundational knowledge is essential for understanding the structure, reactivity, and properties of organic molecules, which are built from these atomic and bonding principles.
