Rectangular Coordinate System: Videos & Practice Problems

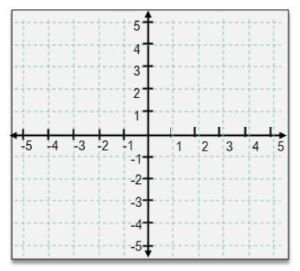

In this lesson, we explore the rectangular coordinate system, also known as the Cartesian plane, which allows us to graph relationships between two variables. This system consists of two perpendicular number lines: the horizontal x-axis and the vertical y-axis, creating a two-dimensional grid. Points in this system are represented as ordered pairs, written in the form (x, y), where 'x' indicates the position along the x-axis and 'y' indicates the position along the y-axis.

To plot a point, you start at the origin, which is the point (0, 0) where the x-axis and y-axis intersect. For example, to plot the point (4, 3), you move 4 units to the right along the x-axis and then 3 units up along the y-axis. Conversely, for a point like (-3, 2), you would move 3 units to the left on the x-axis and then 2 units up on the y-axis. Understanding the signs of the coordinates is crucial: positive x-values are to the right of the origin, while negative x-values are to the left; similarly, positive y-values are above the origin, and negative y-values are below.

As you practice plotting points, you will encounter various combinations of positive and negative coordinates. For instance, the point (-2, -3) requires moving 2 units left and 3 units down, while (5, -4) involves moving 5 units right and then 4 units down. The origin (0, 0) serves as a reference point, and points like (0, -3) indicate movement straight down from the origin without any horizontal displacement.

The Cartesian plane is divided into four regions known as quadrants, which are numbered counterclockwise starting from the top right. Quadrant I contains positive x and y values, Quadrant II has negative x and positive y values, Quadrant III has negative x and y values, and Quadrant IV has positive x and negative y values. Understanding these quadrants helps in visualizing the location of points based on their coordinates.

By mastering the plotting of points and understanding the coordinate system, you will be well-equipped to analyze and represent relationships between two variables effectively.

In this lesson, we explore how to graph points on a coordinate plane and identify their respective quadrants. Each point is represented by an ordered pair, where the first number corresponds to the x-coordinate and the second number corresponds to the y-coordinate. To graph a point, you start at the origin (0,0) and move along the x-axis either to the right (for positive values) or to the left (for negative values), followed by moving vertically along the y-axis either up (for positive values) or down (for negative values).

For example, to graph the point (1, -2), you would move 1 unit to the right on the x-axis and then 2 units down on the y-axis, placing the point in the fourth quadrant. Similarly, for the point (5, 2), you would move 5 units to the right and 2 units up, locating it in the first quadrant. The point (-3, -4) requires moving 3 units to the left and 4 units down, which places it in the third quadrant. Lastly, the point (-4, 3) involves moving 4 units to the left and 3 units up, positioning it in the second quadrant.

Understanding the quadrants is essential: Quadrant I (top right) contains points where both coordinates are positive, Quadrant II (top left) has a negative x-coordinate and a positive y-coordinate, Quadrant III (bottom left) has both coordinates negative, and Quadrant IV (bottom right) has a positive x-coordinate and a negative y-coordinate. This systematic approach to graphing points and identifying their quadrants is fundamental in coordinate geometry.

Plotting points on the Cartesian plane involves identifying the coordinates given in the form (x, y) and locating their exact positions by moving along the x-axis and y-axis. For example, to plot the point (3, 4), start at the origin (0, 0), move 3 units to the right along the x-axis because the x-coordinate is positive 3, and then move 4 units up along the y-axis since the y-coordinate is positive 4. The intersection of these movements marks the point (3, 4).

Similarly, for the point (-4, 2), begin at the origin, move 4 units to the left on the x-axis due to the negative x-coordinate, and then move 2 units up on the y-axis. The intersection here represents the point (-4, 2). For points with negative y-values, such as (-3, -5), move 3 units left on the x-axis and 5 units down on the y-axis. This method ensures accurate placement of points in all four quadrants of the Cartesian plane.

When plotting (5, -2), move 5 units right on the x-axis and 2 units down on the y-axis. This systematic approach of moving horizontally according to the x-coordinate and vertically according to the y-coordinate helps in visualizing and graphing ordered pairs effectively.

Understanding how to plot points is fundamental in coordinate geometry, as it forms the basis for graphing lines, curves, and shapes. The Cartesian coordinate system uses two perpendicular number lines—the x-axis (horizontal) and the y-axis (vertical)—to define the position of points in a plane. Each point is an ordered pair (x, y), where x represents the horizontal displacement and y the vertical displacement from the origin.

By practicing this method, students develop spatial reasoning and gain the ability to interpret and create graphs, which are essential skills in mathematics and related fields. This technique also lays the groundwork for understanding more complex concepts such as functions, transformations, and vector spaces.

To graph an equation with two variables, such as -2x + y = -1, the first step is to isolate the variable y. This is done by rearranging the equation to the form y = mx + b, where m is the slope and b is the y-intercept. For the given equation, you would add 2x to both sides, resulting in y = 2x - 1.

Next, you will create a table of ordered pairs by selecting several values for x and calculating the corresponding y values. Typically, choosing 3 to 5 x values is sufficient. For example, if you choose x = -2, -1, 0, 1, 2, you can substitute these values into the equation:

• For x = -2: y = 2(-2) - 1 = -4 - 1 = -5 → Ordered pair: (-2, -5)
• For x = -1: y = 2(-1) - 1 = -2 - 1 = -3 → Ordered pair: (-1, -3)
• For x = 0: y = 2(0) - 1 = 0 - 1 = -1 → Ordered pair: (0, -1)
• For x = 1: y = 2(1) - 1 = 2 - 1 = 1 → Ordered pair: (1, 1)
• For x = 2: y = 2(2) - 1 = 4 - 1 = 3 → Ordered pair: (2, 3)

After calculating the ordered pairs, you can plot these points on a graph. For instance, the points (-2, -5), (-1, -3), (0, -1), (1, 1), and (2, 3) will be marked on the coordinate plane. Once all points are plotted, connect them with a straight line, which represents the graph of the equation.

In summary, graphing an equation involves isolating y, calculating ordered pairs by substituting x values, plotting these points, and connecting them to form a line. If specific x values are not provided, you can choose your own, ensuring a clear representation of the equation on the graph.
